Elevator Buckets:
We have different models which are available for your choice.

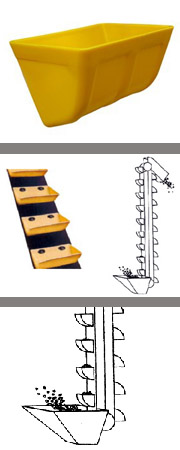

D Series Bucket
In most cases, buckets stopped in use are caused by the heavy abrasion on the bucket mouth and the tearing at the bucket mouth or the bolt fitting due to collision in the running. Our D bucket design will relieve such situation in use and extend the life of the bucket. The unique design has made an appropriate thickness reduction on the bottom which requires a lower intensity, and the saved raw material will be used to increase the thickness of the bucket mouth and the area around bolt holes. In this way, the buckets has higher intensity and can become more wear-resistant without increasing the total weight. This design has been approved by test and widely used by leading conveying equipment manufacturers in North America.
Usage:
1.Suitable for high-speed centrifugal discharge.
2.Recommended minimum bucket spacing: width of the bucket projection "B"+25mm, which can be appropriately reduced according to elevator capacity requirement.
3.Recommended elevator velocity ¡Ü 2.5m/s.
4.Recommend using"Z-Y+10%" as usable capacity for engineering purpose.
SB Series HDPE Bucket
We have different models of SB series HDPE Bucket.
Metal bucket
Usage£º
1.Suitable for high-speed centrifugal discharge.
2.Recommended minimum bucket spacing: width of the bucket projection "B"+25mm, which can be appropriately reduced according to elevator capacity requirement.
3. Recommended elevator line speed ¡Ü2.5m/s.
4. Recommended using ¡°(Z-Y)+10%¡± as the available capacity for engineering design.
S Type Steel Bucket
With more small bucket spacing compared with D type bucket, to increase the elevator capacity.
Usage:
1. Suitable for high-speed elevator or light bulk material lifting.
2. Recommended minimum bucket spacing: width of the bucket projection "B", which can be appropriately reduced according to elevator capacity requirement.
3. Recommended elevator line speed ¡Ü3.5m/s.
4. Recommended using ¡°(Z-Y)+5%¡± as the available capacity for engineering design.
For more Detailed info,please turn to our web Download or contact with us to get!
|
