Raised Edge Conveyor Belt(Wall-side)

InformationŁş

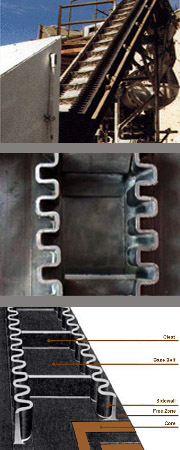

Corrugated Sidewall Conveyor Belt :
The latest addition to the vast range of Conveyor Belts is The Corrugated Sidewall & Cross Cleats Conveyor Belts which have
found acceptance with many of our existing customers.
Advantages :
Corrugated sidewall conveyor belt is one of the most effective ways of elevating materials in a confined
space, the economy is achieved by single belt operation, wide range material can be handled, less space
requirement, no transfer point, low maintenance and big capacity. Corrugated sidewall belt can be
designed into a set of complete transportation system according to application.

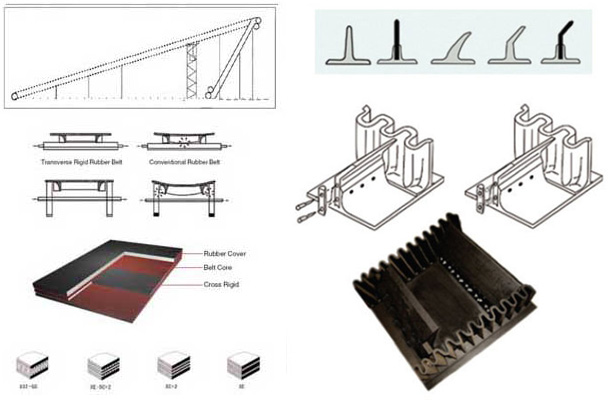

Base Belt Structure:

Four parts: Top cover rubber; Bottom cover rubber; Reinforced core; Cross rigid.
Thickness of top cover rubber: 3-6mm
Thickness of bottom cover rubber: 1.5-4.5mm.
Belt core: Cotton, Nylon, EP or Steel Cord
The Width is the same as normal belt.
Cleat types: T, TS, C , TC and TCS
The cleat is made of enforced fabric, solid, anti-shock to avoid distortion.
ˇ°TS and TCSˇ± cleat are normally used for abrasion condition.
ˇ°T and TSˇ± cleat are normally used up to 40ˇăC, ˇ°TC and TCSˇ± are normally used from 40ˇăto 90ˇăC.
Sidewall, cleat and base belt are joined through hot vulcanization.
Cleat and sidewall are joined through bolt to prevent leakage.
