Impact Bar

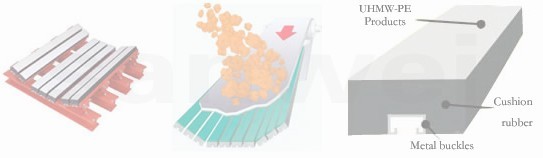

Impact bar is used in the loading area of the belt conveyor to replace the traditional cushion rollers. It¡¯s designed to absorb impact loading which will dramatically reduce shock and stress loading to the structure.


1. Avoids the damage to the belt through the contact between the bar and surface of belt.

2. The conveyor belt is stressed evenly in the loading area, which will reduce  the daily maintenance cost.

3. Effectively eliminate the spillage or scattering of the material caused by unequality of the stress on the belt.

4.The UHMW polyethylene surface has outstanding sliding properties.

5. Arc surface of polyethylene enables the conveyor belt to running smoothly.

6. Ultra elastic rubber absorb the impact in the maximum.

7. Each part of the impact bar is closely jointed by hot vulcanization.

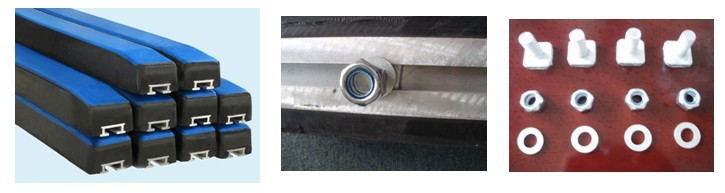

8. ¡°T-track¡± fastening device has different tightening points along the bar and make the joining strong and reliable, easy to install and remove.

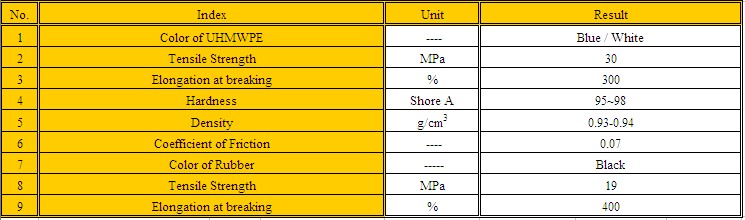

Technical Data:

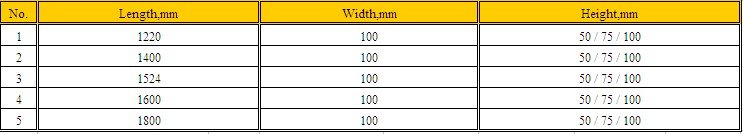

Size and Specification:


1.Standard accessories including bolt and nylon ¨Cinserted hexagon nut are offered.

2.Other types can be made according to customers¡¯ demand.
